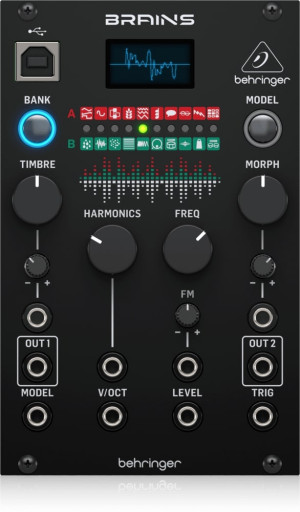

‌Behringer BRAINS - High-Resolution Multi-Eng...

Description

Amazing sound powerhouse for anything from percussion, leads and basses to drums, drones and soundscapes 20 digital oscillators including 15 Mutable Instruments Plaits* engines for infinite sound creation High-resolution 96 kHz synthesis for unsurpassed sound quality Inspiring OLED oscilloscope for waveform visualization Synthesis models designed for pitched sounds like ripping leads, lush chords and ethereal pads 10 synth engines: Virtual Analog, Waveshaper, FM, Grains, Additive, Chords, Speech, Karplus, Hypersaw and Wavetable 10 percussion and noise engines: Rain, Noise, Dust, Modal Strings, FM Drum, Bass, Snare, Hi Hat, Cowbell and Tom Multi-functional Timbre and Harmonics controls for complex synthesis Morph control to seamlessly change the character of the selected sound sources 2 separate audio outputs for both main sound and a dynamic variant USB connector for easy firmware update Eurorack specs: 16HP, 130mA +12V, 10mA -12V SPECIFICATIONS Inputs Timber CV input Type 3.5 mm TS jack, DC to 2 kHz Impedance 50 kΩ Max input level ±8 V Harmonics CV input Type 3.5 mm TS jack, DC to 2 kHz Impedance 100 kΩ Max input level ±5 V Freq CV input Type 3.5 mm TS jack, DC to 2 kHz  Impedance 50 kΩ  Max input level ±8 V  Morph CV input Type 3.5 mm TS jack, DC to 2 kHz  Impedance 50 kΩ Max input level ±8 V  Model CV input Type 3.5 mm TS jack, DC to 2 kHz  Impedance 100 kΩ  Max input level ±5 V  V/oct input Type 3.5 mm TS jack, DC to 2 kHz  Impedance 100 kΩ  Max input level -3 to +7 V  Level input Type 3.5 mm TS jack, DC to 2 kHz  Impedance 50 kΩ  Max input level 0 to +8 V  Trig input Type 3.5 mm TS jack, DC to 2 kHz  Impedance 50 kΩ  Max input level 0 to +8 V Outputs Out 1 Type 3.5 mm TS jack, DC coupled Impedance 1 kΩ  Max output level  6.2 V   Out 2 Type 3.5 mm TS jack, DC coupled  Impedance 1 kΩ Max output level 6.2 V Controls Timbre Darker or brighter content Harmonics Frequency spread or tonal balance  Freq Frequency adjustment Morph Panning or character  Bank Toggles band A and B  Model Scrolls through models in active bank  Digital ProcessingA/D converter Resolution 16 bit  D/A converter Resolution 16 bit  Sampling rate 48 kHz  Internal processing  32-bit floating point   USB Type USB 2.0, type B  Power Power supply Eurorack Current draw 130 mA (+12 V), 10 mA (-12 V)  Physical Dimensions 129 x 81 x 45 mm (5.0 x 3.2 x 1.8")  Rack units 16 HP Weight 0.16 kg (0.35 lbs)
