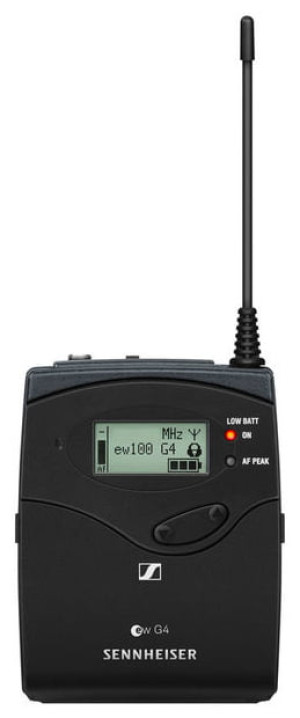

Sennheiser SK 100 G4-B - Robust bodypack tra...
Description
Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems. Features Robust bodypack transmitter for daily use on stage. Easy and flexible wireless synchronization between transmitter and receiver via infrared Fast frequency allocation for up to 12 receivers via new linking functionality Up to 20 compatible channels Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range Transmission Range: up to 100 meters / 300 feet High RF output power (up to 30 mW) depending on country regulations What's in the box?
SK 100 G4 bodypack transmitter 2 AA batteries quick guide safety guide manufacturer declaration sheet Technical Data Frequency range A1: 470 - 516 MHz A: 516 - 558 MHz AS: 520 - 558 MHz GB: 606 - 648 MHz G: 566 - 608 MHz B: 626 - 668 MHz C: 734 - 776 MHz D: 780 - 822 MHz E: 823 - 865 MHz 1G8: 1785 - 1800 MHz JB: 806 - 810 MHz K+: 925 - 937,5 MHz Dimensions Approx. 82 x 64 x 24 mm Compander Sennheiser HDX THD, total harmonic distortion ≤ 0.9 % Weight (incl. batteries) approx. 160 g Signal-to-noise ratio ≥ 110 dBA RF output power Max. 30 mW Switching bandwidth up to 42 MHz Peak deviation ±48 kHz Nominal deviation ±24 kHz Operating time Typically 8 h Modulation Wideband FM Power supply 2 AA batteries, 1.5 V or BA 2015 accupack Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA Input impedance 40 kΩ, unbalanced / 1 MΩ Max. Input voltage 3 Veff Powering 3 V battery / 2.4 V rechargeable battery Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz Temperature Range -10 °C to +55 °C Frequency stability ≤ ±15 ppm
