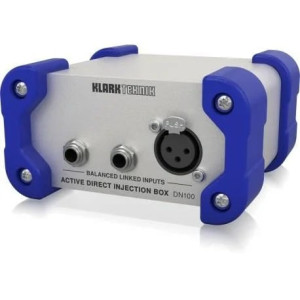

‌Klark Teknik DN100 V2 - DI Box active with e...

Description

Klark Teknik DN100 V2 - DI Box active with extended dynamic range.

Main features: Active DI box with high dynamic headroom powered by +48 V phantom power Fully transformer isolated for galvanic separation between input and output Balanced line inputs on Neutrik* XLR connectors and high impedance LINK inputs and jacks on 1/4" TRS connectors 20 dB input attenuator and ground switch Extruded aluminum housing with rubber covers Compact and durable housing Specification: inputs 2 x 1/4″ TRS and 3-pin XLR connected in parallel Impedance 1 MΩ nominal, balanced or unbalanced, 20 kΩ (XLR) Maximum Input Level 35 dBu (after pre-attenuator) 20dB pad on the input exits 3-pin XLR connectors Impedance 50Ω Maximum output level 15 dBu into 10kΩ load Minimum load 600 ohms System Noise Level -103dBu, 22Hz to 22kHz unweighted, input shorted with 10kΩ resistor Frequency response 20 Hz - 20 kHz, ± 1dB, loaded into 10 kΩ Distortion (THD+N)
