Behringer 1006 FILTAMP MODULE - Legendary 25...
Description

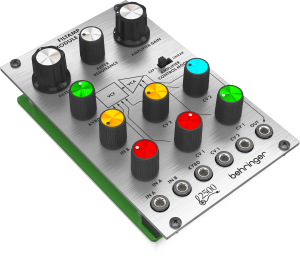

Behringer 1006 FILTAMP MODULE – Classic VCF/VCA Synthesizer Module from the Legendary 2500 Series The Behringer 1006 FILTAMP MODULE is a faithful recreation of the iconic VCF/VCA module from the ARP 2500 series, redesigned for modern Eurorack systems. It delivers warm, authentic analog sound and precise dynamic control, offering musicians and sound designers an inspiring tool for shaping tone and texture. Perfect for electronic music, ambient, techno, and experimental sound creation.
Key Features ✅ Classic analog 1006 FiltAmp design from the 1970s. ✅ Authentic reproduction of the original ARP 2500 circuitry with a 24 dB low-pass filter. ✅ Fully analog signal path with transistor-based VCF and discrete VCA sections. ✅ Mixes two audio signals with adjustable relative amplitude. ✅ Two VCA modes: linear and exponential for flexible dynamics control. ✅ Adjustable filter resonance – from subtle boost to full self-oscillation. ✅ Fully compatible with Eurorack systems (16 HP, ±12V power).
Analog Precision in a Modern Format This module combines the warmth and character of vintage analog design with the reliability of modern circuitry. Offering a 20 Hz to 20 kHz frequency range and precise 1V/oct tracking, the 1006 FILTAMP ensures full musical expressiveness. Three CV inputs for the filter with adjustable attenuation allow for rich, evolving modulations that bring your patches to life.
Applications The Behringer 1006 FILTAMP MODULE serves as a versatile core component in any modular synthesizer setup. It functions as a powerful 24 dB low-pass filter, a precise voltage-controlled amplifier (VCA), or an audio mixer for two signals. Ideal for sound designers, modular enthusiasts, and electronic music producers looking for vintage analog tone in a modern Eurorack format.
Technical Specifications Inputs: 2 x 3.5 mm TS (A/B), DC coupled, 70 kΩ impedance, max input level +14 dBu CV Inputs: 3 x 3.5 mm TS, 1V/oct, 50 kΩ impedance Output: 1 x 3.5 mm TS, 1 kΩ impedance, max +14 dBu Filter: 24 dB low-pass, 20 Hz – 20 kHz, adjustable resonance VCA Modes: Linear and exponential Power Supply: +12 V 22 mA, –12 V 20 mA Width: 16 HP Weight: 0.17 kg Materials and Build The module is built from premium components with a durable aluminum front panel for long-term reliability. Precision 3.5 mm jacks and smooth control knobs ensure accurate operation and a comfortable workflow even in dense Eurorack setups.
Included in the Box Behringer 1006 FILTAMP MODULE Eurorack power cable Mounting screws Summary The Behringer 1006 FILTAMP MODULE combines legendary analog tone with modern precision. Offering flexible control, rich character, and full Eurorack compatibility, it’s a must-have for any modular enthusiast seeking authentic vintage sound.
